Description

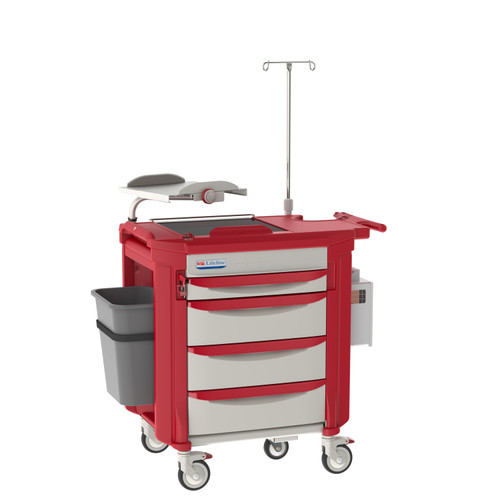

Metro LECCRP2 Red Lifeline Crash Cart
Lifeline’s integrated features are specifically designed for a Code Response.— Now in RED.
Features:
- Lifeline’s integrated features are specifically designed for Code Response. Available in Blue or Red.
- Infection Control: Lifeline helps improve Infection Control with a cleaner design that includes corrosion proof polymer materials, smooth rounded corners to allow for easy cleaning and Microban Antimicrobial Product Protection that keeps the cart cleaner between cleanings.
- Superior Manoeuvrability: Lightweight polymer construction, 127mm diameter casters, an ergonomic handle and a proprietary 5th wheel steering system provides for easy manoeuvring and assures maximum control in transit.
- Organization and Identification: Get organized with Lifeline. Self-closing, full access drawers in a variety of heights, drawer divider systems, exchange trays and drawer labels are available to allow for easy access and identification of drawer contents.
- Security for Every Need: Tamper evident seals secure the top compartment, drawers and side bins. Drawers can be sealed in segments or one seal can secure the entire cart.
- Field Upgradable: Drawers and many accessories may be added or reconfigured at the facility. Choose the drawers and accessories for today’s Code Response needs and change them to meet tomorrow’s.
Specifications
- Cart Body: Blow moulded high density polyethylene (HDPE) body panels and top with Microban antimicrobial product protection. Top has integrated push handle and storage compartment. Side panels provide integrated accessory strips to allow no tool assembly of most accessories. Left side panel also provides integrated pivot pockets for tilt out bins. Bins are available as locking or non-locking.
- Cart Frame: Epoxy coated 14 gauge, cold rolled steel
- Locking Mechanism: 12 gauge stainless steel bar with polycarbonate drawer mounted lock tabs. Passive security provided for drawers and side bins (optional) with plastic security seal. Locking mechanism provides one or two seal compartmentalized locking options.
- Steering Mechanism: Steering is assisted by a 5th wheel that is actuated by squeezing a polymer trigger mounted to the cart handle. When activated, the 5th wheel is locked perpendicular to the handle providing positive control when cart is pushed. When trigger is released all 5 wheels swivel allowing manoeuvrability in any direction. 5th Wheel: 102mm diameter plate caster, mounted to a swivel lock mechanism. Patent Pending.
- Corner Casters: Four 127mm diameter stem casters with polyurethane tread and polymer horn: 2 Swivel — Rear, 2 total lock (brake and swivel lock) — Front.
- Drawers: ABS injection moulded drawer body, blow molded HDPE with Microban antimicrobial drawer front, ABS and Microban antimicrobial injection moulded coloured drawer pull and full extension, self-closing, ball bearing drawer slides.
- Inside Dimension: 163/4″ W. x 20″ L. (425 x 508mm)
- Weight Capacity Inside Height
3″ (76mm) = 15 lbs. (6.75kg) 2.75″ (70mm)
6″ (152mm) = 25 lbs. (11.25kg) 5.75″ (146mm)
9″ (228mm) = 45 lbs. (20.25kg) 8.75″ (222mm)
12″ (305mm) = 45 lbs. (20.25kg) 11.75″ (298mm) - Pullout shelf: 44mm high epoxy coated 16 gauge cold rolled steel, with full extension, self-closing, ball bearing drawer slides. Weight Capacity: 20.25kg
- Defibrillator Swing Arm: 18 gauge tubular steel, epoxy coated with tensioning knob. Swings 90 degrees from work surface,
- Adjustable Defibrillator Platform: Two 16 gauge epoxy coated steel plates with zinc adjustment mechanism and 360 degree rotation. 368mm wide platform adjust from 206mm to 362 mm in length. Weight capacity: 18kg
